DES 250 Digital Media Design II
DES 250 Digital Media Design II

Assignment 1_1: HTML Markup

Recipe Text

Find a recipe for a simple dish. The recipe should include:


All text should be digital which means you either copy it from a website or you type it. The text should be free of all formatting previously applied to it (such as bullet points for list etc.). We won’t use images for this assignment.

Write the HTML markup/code

Writing this will help you get more familiar with HTML tags. Keep in mind that line breaks and text indents/tabs within the markup have no effect on the result rendered in a browser.

Because code is VERY sensitive, double or triple check if the opening and closing tags are correct. Be very careful with those. One missing ">" or misspelled tag will likely break the layout.

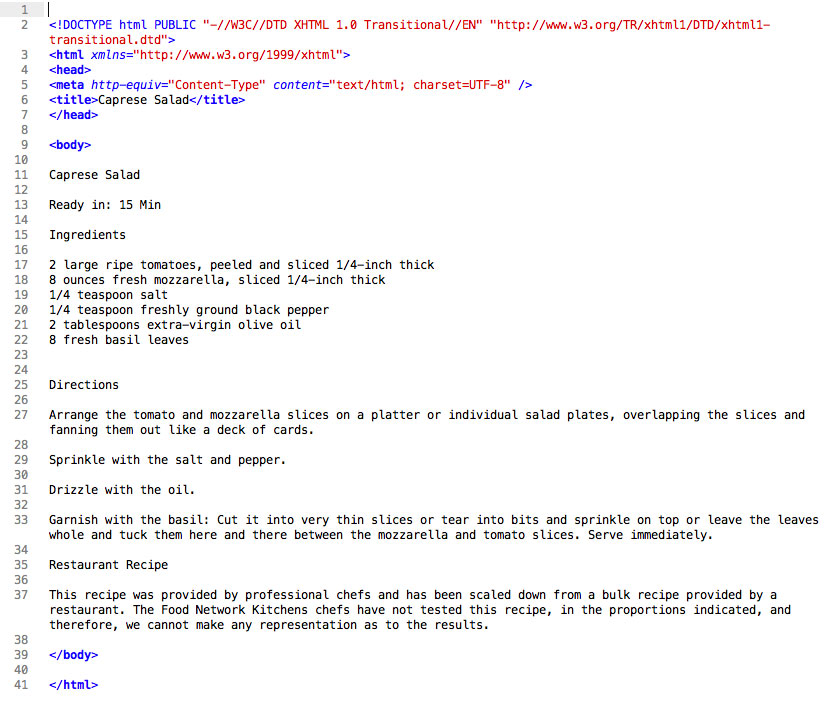

Below in blue are the new tags for an HTML5 document. The example images below contain dated doctypes for an HTML4/XHTML document. Use the new HTML5 doc type instead. Since I want you to write your own code I intentionally use images to avoid copy + pasting everything. Only content between the opening and closing "Body" tags will be visible in the browser.

HTML code:
<span class="blue"><!doctype html><br /> <br /> <html><br /></span> <br /> <head><br /> <title>Recipe 1_1 / A</title><br /> </head><br /> <br /> <body><br /> </body><br /> <br /> <span class="blue"> </html></span>

TEXT

Add the recipe text between the body tags. It helps to create spaces between the pieces of information although those spaces won't be visible when you view the HTML in a browser. You need tags to define the information.



TAGS

Add the tags. Wrap the pieces of information inside the appropriate tags. By doing that you're giving the markup meaning and structure. A recipe text has information that can be defined in a few very typical HTML tags such as headlines and and sub heads, paragraphs and lists with list items.

The browser will apply default CSS styles to those tags so when you view the saved HTML in a browser the recipe has a visual structure already. We'll be getting rid off those browser defaults later.

For this assignment we'll be using the following tags to identify the pieces of information:

HTML code:
<h1> <h1>
<h2> </h2>
<h3> </h3>
<p> </p>
<ul> </ul>
<li> </li>
<span class=""> </span>
<div id=""> </div>

"h1", "h2" and "h3" tags are used to identify the hierarchy of headlines. The "p" tag should be used to wrap paragraphs of text. The "ul" tag defines a list in which the list items ( "li" tags) are nested. The "span" tag is often used to target specific information inside other elements (make one word inside a paragraph bigger, for example). The "div" tag is used to divide the layout into seqments.



DIVS

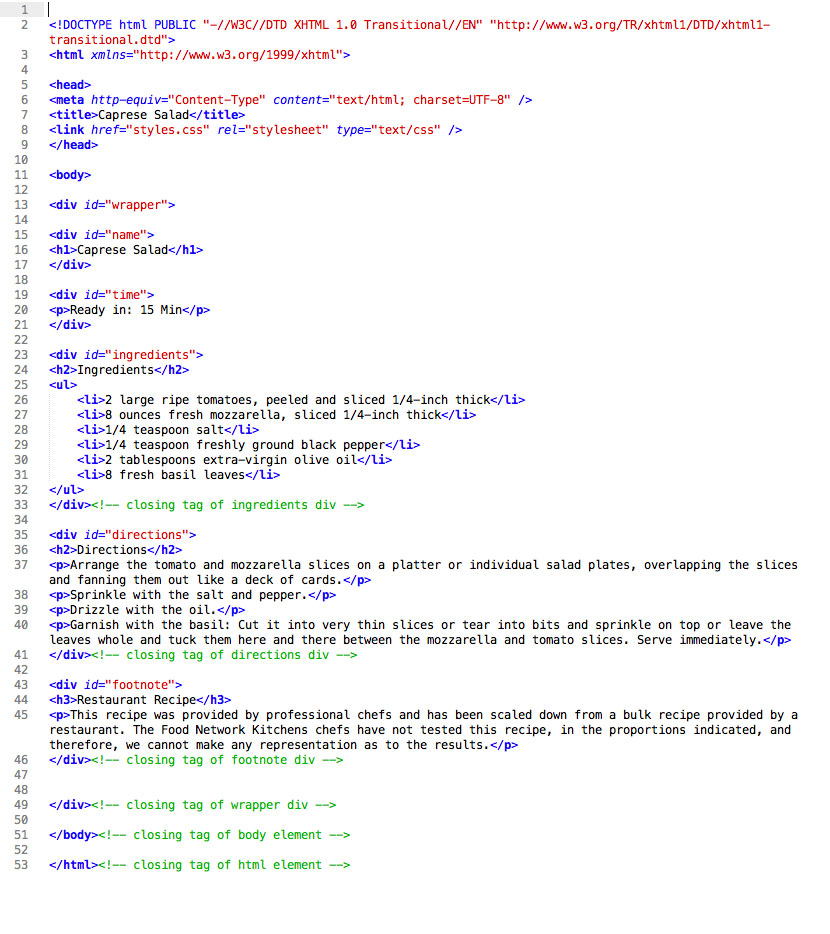

The following example adds so called "div" tags around combined pieces of content. For example around the Ingredients headline and the list. Those div tags have no immediate effect on the rendered layout in a browser. You don't have to use them but you'll get additional CSS styling and placement options if they're there:



COMMENTING TAGS

Text inside comment tags (green text in the example above) won't be visible in a browser. They help to organize the HTML markup. In the example above they help to connect closing tags with opening tags.

Add the HTML to your site files

Name the HTML "recipe-a.html" into your "recipe-a" folder (inside your "lastname-1_1" folder). Since the HTML markup won't change much you can already copy this HTML file into the other recipe folders. You can already duplicate it. Then name it "recipe-b.html", "recipe-c.html", etc. and put them into their appropriate folders.

Reading

Please download and read the HTML basics excerpt from the book "HTML & CSS – design and build websites".
